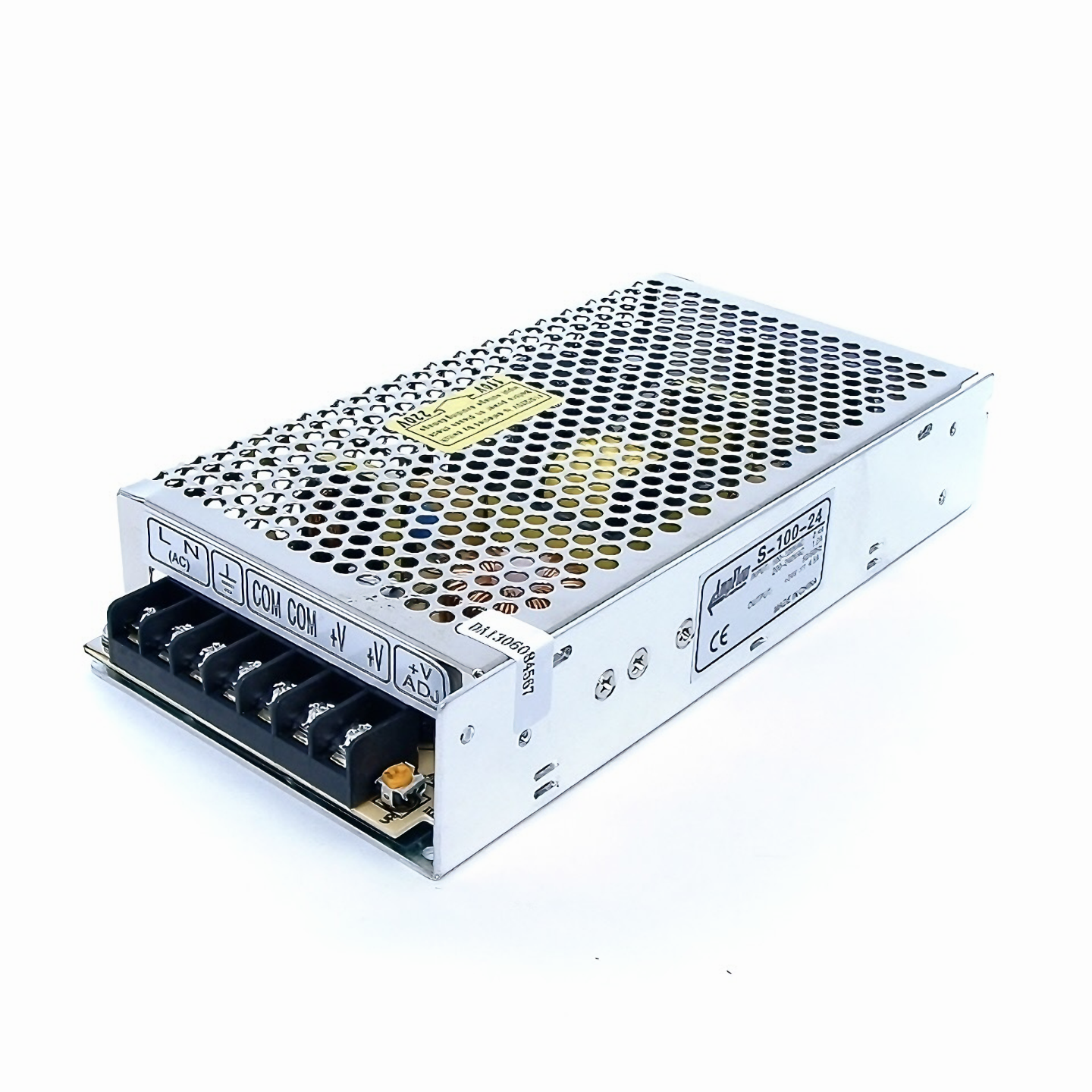

AmpFlow 100W Power Supplies
|
|
|
|
|
S-100-5 |
S-100-12 |
S-100-24 |
S-100-36 |
S-100-48 |
| DC Output |
5V, 20A |
12V, 8.5A |
24V, 4.5A |
36V, 2.7A |
48V, 2A |
| Wave and Noise |
75mV p-p |
100mV p-p |
100mV p-p |
100mV p-p |
100mV p-p |
| Inlet Stability |
+/- 0.5% |
+/- 0.3% |
+/- 0.2% |
+/- 0.2% |
+/- 0.2% |
| Load Stability |
+/- 0.5% |
+/- 0.3% |
+/- 0.2% |
+/- 0.2% |
+/- 0.2% |
| Efficiency |
78% |
81% |
84% |
84% |
84% |
| Output Voltage Adjustment Range |
+/- 10% |
| AC Input Voltage Range |
85V - 132VAC /
170V - 264VAC (Select range by switch),
47-63Hz
|
| AC Inrush Current |
30A at 115VAC / 60A at 230VAC |
| Overload Protection |
105% - 150% of rated current |
| Over-Voltage Protection |
115% - 150% of rated voltage |
| Set up, Rise, Hold up Time |
200ms, 50ms, 20ms |
| Withstand Voltage |
1.5KVAC 1 minute |
| Isolation Resistance |
500VDC / 100 MΩ |
| Working Temperature |
-10C to +50C |
| Safety Standards |
GB4943, UL60950, EN60950 |
| EMC Standards |
GB9254, EN55022, Class A |
| Weight |
1.3 Pounds |
|
|
www.AmpFlow.com
|
