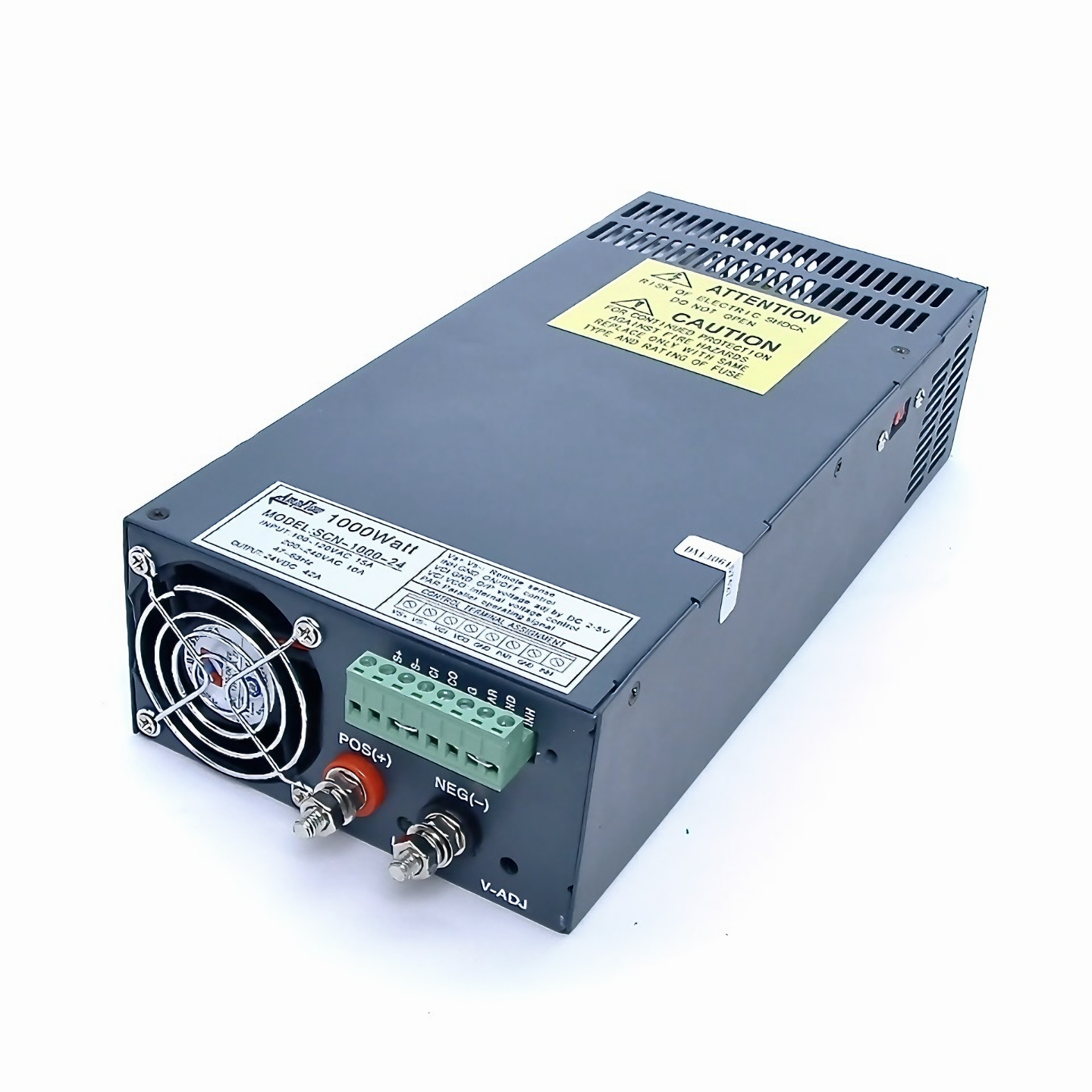

AmpFlow 1000W Power Supplies
|
|
|
|
|
SCN-1000-12 |
SCN-1000-24 |
SCN-1000-36 |
SCN-1000-48 |
| DC Output |
12V, 80A |
24V, 42A |
36V, 28A |
48V, 21A |
| Wave and Noise |
150mV p-p |
| Inlet Stability |
+/- 0.5% |
| Load Stability |
+/- 0.5% |
| Efficiency |
80% |
85% |
86% |
87% |
| Output Voltage Adjustment Range |
+/- 10% |
| AC Input Voltage Range |
110V - 240VAC 47-63Hz
|
| AC Inrush Current |
25A at 115VAC / 45A at 230VAC |
| Overload Protection |
105% - 135% of rated current |
| Over-Voltage Protection |
115% - 140% of rated voltage |
| Set up, Rise, Hold up Time |
200ms, 50ms, 20ms |
| Withstand Voltage |
1.5KVAC 1 minute |
| Isolation Resistance |
500VDC / 100 MΩ |
| Working Temperature |
-10C to +50C |
| Safety Standards |
GB4943, UL60950, EN60950 |
| EMC Standards |
GB9254, EN55022, Class B |
| Weight |
6.0 Pounds |
|
|
