AmpFlow 400W Power Supplies
|
|
|
|
|
S-400-5 |
S-400-12 |

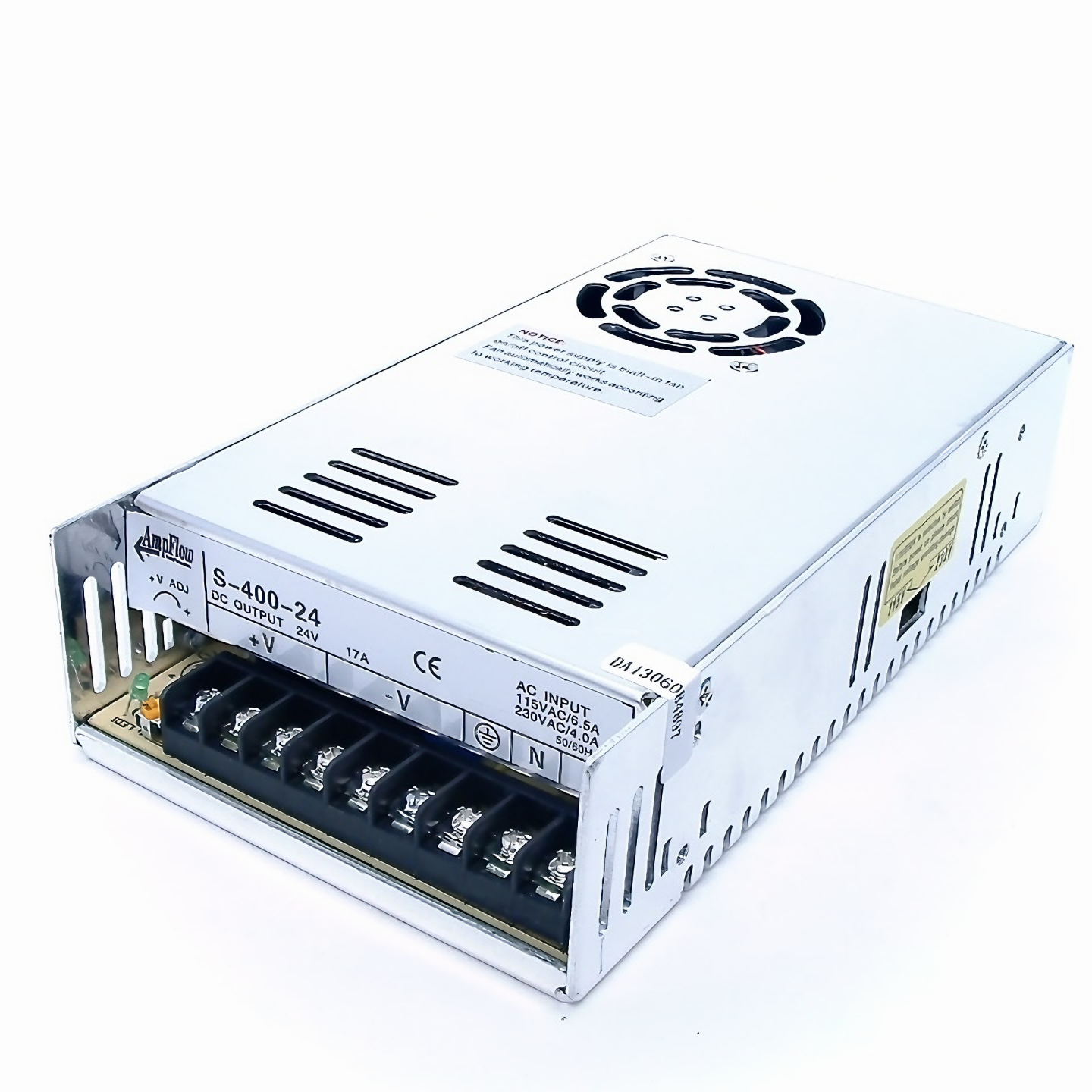

S-400-24 |
S-400-36 |
S-400-48 |
| DC Output |
5V, 60A |
12V, 33A |
24V, 17A |
36V, 11A |
48V, 8.3A |
| Wave and Noise |
100mV p-p |
150mV p-p |
150mV p-p |
150mV p-p |
200mV p-p |
| Inlet Stability |
+/- 0.5% |
| Load Stability |
+/- 1.0% |
+/- 0.5% |
+/- 0.5% |
+/- 0.5% |
+/- 0.5% |
| Efficiency |
73% |
74% |
81% |
82% |
83% |
| Output Voltage Adjustment Range |
+/- 10% |
| AC Input Voltage Range |
85V - 132VAC /
170V - 264VAC (Select range by switch),
47-63Hz
|
| AC Inrush Current |
25A at 115VAC / 50A at 230VAC |
| Overload Protection |
105% - 135% of rated current |
| Over-Voltage Protection |
115% - 150% of rated voltage |
| Set up, Rise, Hold up Time |
200ms, 50ms, 20ms |
| Withstand Voltage |
1.5KVAC 1 minute |
| Isolation Resistance |
500VDC / 100 MΩ |
| Working Temperature |
-10C to +50C |
| Safety Standards |
GB4943, UL60950, EN60950 |
| EMC Standards |
GB9254, EN55022, Class B |
| Weight |
2.0 Pounds |
|
|
